Products - Hepa Ulpa Filters

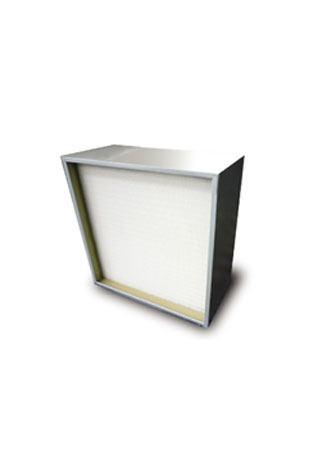

Camfil Farr Mega-Flo Filter MF..13/14 offers HEPA-level efficiencies for final filtration of pharmaceutical, medical and research facilities (H13/H14 acc. EN1822). Ideal for use in existing systems that require increased airflow or low pressure drop.


  • Suitable for high air flow
  • High quality glass fibre media
  • High efficiency

More information

The Camfil Farr Mega-Flo filter offer a high-efficiency air filtration in a lower pressure drop design. It is ideal for HVAC applications, medical facilities, food processing, pharmaceutical and semiconductor manufacturing and other locations where clean air and energy savings are critical to system operation.

Key Factors:

  • Available efficiencies - H13-H14 in accordance with EN1822.
  • Assembled using a unique polyurethane potting process that completely encapsulates the filter pack within the enclosing frame.
  • Includes uniformly spaced pleats separated by thermoplastic resin separators to ensure pleat stabilisation and uniform airflow throughout the filter pack at 250 pleat height.
  • the filter can be delivered with wooden frame or galvanised frame.
  • one-piece seamless urethane gasket to ensure a leak-free filter-to-holding mechanism seal. (A neoprene gasket is also available).
  • Efficiency tested to assure adherence to published values.
  • Use up to 3400 m³/h.
  • Each unit includes a label noting tested efficiency, pressure drop at rated airflow, and a unique serial number for unit tracking and quality assurance.
  • Due to the Hotmelt Pleating technnology the filter is completly incinerable (MFS...)



Application: HEPA-filter for high air flows.
Type: HEPA-Filter.
Frame: Electro zinc.
Gasket: Endless polyurethane at inlet.
Media: Glass fibre.
Separators: Hot melt beads.
Sealant: Polyurethane.
Faceguard: Expanded metal on both sides powder coated with RAL 9016.
EN 1822 filter class: H13, H14.
MPPS Efficiency: H13:≥99.95%, H14:≥99.995%.
DOP efficiency: ≥99.99%
Recommended final pressure drop: 500 Pa.
Temperature / Humidity: 70° C / 100% RH.
Fire rating: DIN 53438 Class F1.
