Products - Hepa Ulpa Filters

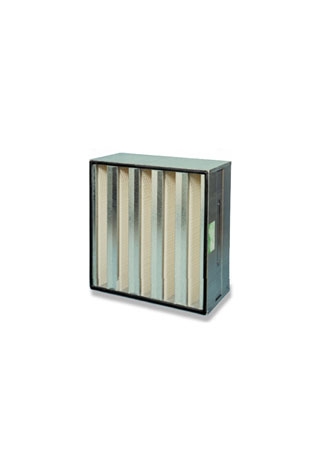

Sofilair E10/E12

Camfil Farr’s Sofilair E10-E12 is a high-capacity HEPA filter. The glass-fibre paper media is ideal for filtration applications before the final stage.

Advantages

  • High air flow rates, up to 5000 m3/hr
  • New ergonomic handle

More information

Sofilair is designed for handling large air volumes, features Camfil Farr’s unique pleating design and offers the following advantages:

  • High air flow rates, up to 5,000 m³/h per hour.
  • New ergonomic handle

The standard version is available with a galvanized or stainless steel frame. Standard versions of Sofilair E10-E-12 are equipped with a PU gasket.

The filter consists of micro-glass fibre media in efficiencies from 85% to 99.5% @ MPPS (filter classes E10-E12 according to EN 1822).

The media is pleated using Camfil Farr’s Controlled Media Spacing™ technology. CMS™ ensures optimized filter element depth and pleat spacing, resulting in minimized configuration losses and low resistance to air flow. Continuous hotmelt separators ensure uniform pleat spacing and form a rigid self-supported media pack.

Description

Application: Very high efficiency final filtration in air conditioning systems, housings and diffusers.
Type: High air flow HEPA filter.
Frame: Galvanised steel.
Media: Glass fibre paper.
Separator: Hot-melt beads.
Sealant: Polyurethane.
Gasket: One piece half round continuous gasket.
EN 1822 efficiency: E10, E12
MPPS efficiency: E10:>85%, E12:>99.5%
Recommended final pressure drop: 600 Pa.
Maximum air flow rate: See table, use nominal values otherwise a reduction in efficiency may occur.
Temperature: 80°C maximum in continuous service.
Mounting systems: Front and side access filter frames, FC Housings, terminal housings and safe change systems.
