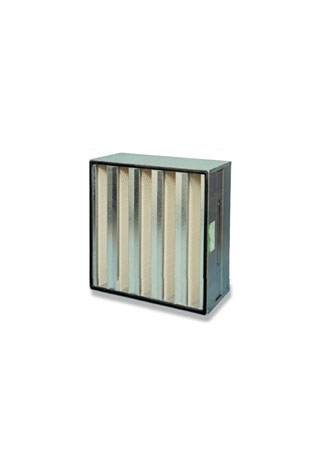

Sofilair H13/H14

Camfil Farr’s Sofilair H13/H14 is a high-capacity HEPA filter. The glass fibre paper media is ideal for final filtration applications in air conditioning systems.

Advantages

  • High air flow rates, up to 4,000 m³/h per hour
  • Optimum filtration sequence in cleanrooms
  • Individual test certificate according to EN 1822
  • New ergonomic handle

More information

Sofilair is designed for handling large air volumes, features Camfil Farr’s unique pleating design and offers the following advantages:

  • High air flow rates, up to 4,000 m³/h per hour
  • Optimum filtration sequence in cleanrooms
  • Individual test certificate according to EN 1822
  • New ergonomic handle

Description

Application: Very high efficiency final filtration in air conditioning systems, housings and diffusers.
Type: High air flow HEPA filter.
Frame: Galvanised steel.
Media: Glass fibre paper.
Separator: Hot-melt beads.
Sealant: Polyurethane.
Gasket: One piece half round continuous gasket.
EN 1822 efficiency: H13, and H14.
MPPS efficiency: H13:>99.95%, H14:> 99.995%.
Recommended final pressure drop: 600 Pa.
Maximum air flow rate: See table, use nominal values otherwise a reduction in efficiency may occur.
Temperature: 80°C maximum in continuous service.
Mounting systems: Front and side access filter frames, FC Housings, terminal housings and safe change systems.



The standard version is available with a galvanized or stainless steel frame. Standard versions of Sofilair H13/H14 are equipped with a PU gasket.

The filter consists of micro-glass fibre media in efficiencies from 99.95% to 99.995% @ MPPS (filter classes H13-H14 according to EN 1822).

The media is pleated using Camfil Farr’s Controlled Media Spacing™ technology. CMS™ ensures optimized filter element depth and pleat spacing, resulting in minimized configuration losses and low resistance to air flow. Continuous hotmelt separators ensure uniform pleat spacing and form a rigid self-supported media pack.

To ensure the expected operating life is achieved, very high efficiency filters must be protected by effective OPACIMETRIC pre-filtration (F7/F8) using Hi-Flo, S-Flo W or Opakfil.
