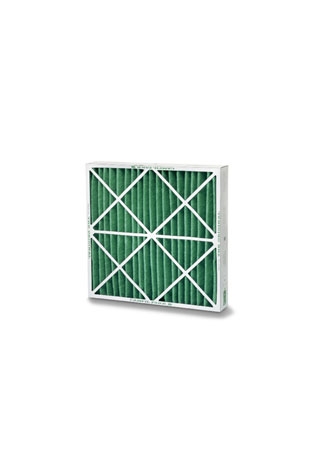

Disposable Pleated Filter Panel 30/30

The 30/30® has been setting the standard for G4 panels for a long time. The combination of the unique media, beverage board and pleating technology makes the 30/30 a low-energy product at the same time as it performs well in all situations.

Advantages

  • Water resistant cardboard frame
  • Conception with girders/crossbars
  • Diagonal stiffner stuck to media to keep the spacing of folds, protect and maintain the filter
  • Fully supported media bonded onto a wire support grid
  • Rounded pleats for a maximum capacity of dust retention and facilitate airflow through the media
  • Replaceable filter media

Descriptions

Application: Primary filter for air conditioning systems.
Type: High performance disposable pleated panel filter.
Case: Rigid water resistant cardboard.
Media: Mixture of cotton and synthetic fibre.
EN 779:2002 efficiency: G4.
Gravimetric efficiency: 92%.
Eurovent 4/5 efficiency: EU4.
Recommended final pressure drop: 250 Pa.
Temperature: 70°C maximum in continuous service.
Holding frames: Front and side access housings and frames are available, Type 8, Type L, and FC Housings.

More information

The unique configuration of the 30/30 filter allows it to hold more dirt and last longer. Since the 30/30 frame is made of water-resistant beverage board instead of recycled cardboard, the 30/30 will stand up to the worst conditions an HVAC system will present, with no filter distortion or blowouts.

The 30/30 is a very energy-efficient filter due to its large media area, resulting in a low pressure drop. The 30/30 media is a blend of cotton and polyester and proven to keep a low pressure drop during the filter’s lifetime. The media is backed with a corrosion-resistant wire backing that eliminates distortion of the media pack under high air flow conditions.
