Products - Sheet and Panel Filters

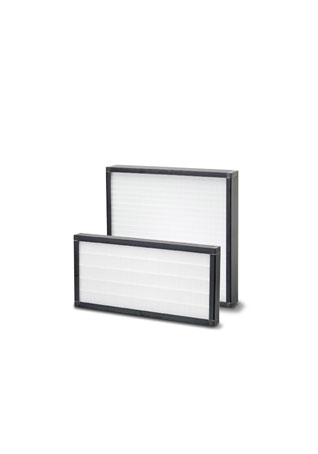

Ecopleat Green

EcoPleat Green has a plastic frame and is therefore more resistant to moisture than a cardboard frame. The product, available in filter classes F6 to F8, is well suited for small air handling units.

Advantages



  • Large surface area
  • Long operating life
  • Ultra compact
  • High dust holding capacity
  • Less frequent changes

Description



Application: Air conditioning or industrial processing systems and for mini air conditioning systems, individual modules, ventilation equipment.
Type: High efficiency compact filter.
Frame: Plastic frame.
Media: Wet-laid glass fibre paper.
Separator: Hot melt glue.
Sealant: Polyurethane.
EN 779:2002 filter class: F6, F7, F8.
ASHRAE 52.2:1999 filter class: MERV 11, MERV 13, MERV 14.
Recommended final pressure drop: 350 Pa.
Temperature: 70°C.
More information



Due to its small size, EcoPleat Green can be installed in most air handling units. Close pleats ensure low energy consumption, a large filter area and low pressure drop.

The filter media used in EcoPleat Green has very fine fibres that guarantee efficient removal of submicron particles throughout the filter’s lifetime. The removal efficiency can be as high as 10 times the efficiency of G4 pre-filters with efficiencies ranging from F6 to F8.

The water-resistant plastic frame provides extra assurance in high-humidity applications. Due to its frame, EcoPleat Green is also 50% lighter than the metal frame version for a smaller environmental impact and easier handling.

EcoPleat Green is well suited for commercial and residential air handling units, as well as other stand-alone systems for comfort applications.

EcoPleat is also sold with cardboard and metal frames.



Relative humidity: 100% RH.
