Products - Sheet and Panel Filters

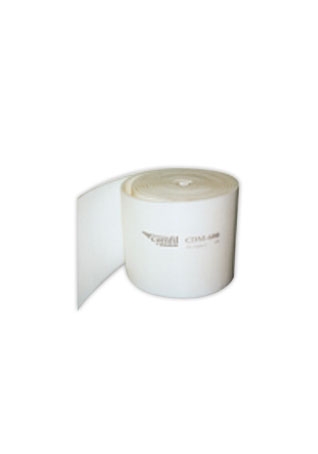

Media Rolls & Pads

Media rolls can be conveniently used as pre-filters or pads to protect ducting and machines from large particles, among other applications. They should be changed regularly to keep dust and dirt from decreasing the air flow and thereby increasing energy consumption, or to avoid damage to your system.

Advantage:

Progressively built up thermal bonded polyester fibre

Application: For use as a pre filter in air conditioning, and spraybooth ventilation.
Flammability: (DIN 53438) self extinguishing.
Media: Synthetic.
EN 779:2002 efficiency: G2, G3, G4.
Arrestance efficiency: 65% - 92%.
Eurovent 4/5 efficiency: EU2, EU3, EU4.
Temperature: 80°C - 100°C maximum in continuous service.
Humidity: 100% RH
More information

Media rolls are used to cut pads ranging from small filter pads used in vacuum cleaners, to large sizes used in paint booth applications to ensure perfect painting results.

Camfil Farr supplies media rolls in different widths, thicknesses and filter classes to suit most applications. Customers can also choose between synthetic media or higher performance glass fibre media.

Camfil Farr can also deliver pre-cut pads tailor-made to meet specific applications and needs.
