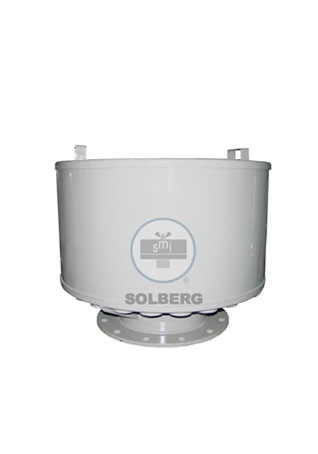

Big Boy FS Series 6"-14" Flange Filter Silencers

Features

• 99%+ removal efficiency std: Polyester=5 micron, Paper=2 micron
• Tubular silencing design - tube is positioned to maximize attenuation and air flow while minimizing pressure drop
• Interchangeable elements
• Temp (continuous): min -15° F ( -26° C) max 220° F (104° C)
• Filter change out differential: 10"-15" in. H2O above initial delta P
• Typical noise attenuation up to 15 dB's (due to the wide range of applications and machines these units are used on, a single graph is insufficient. Please inquire for your specific requirement)
• Pressure drop graphs available upon request
• Low pressure drop center bracket and outlet pipe design
• Durable carbon steel construction with baked enamel finish
• Several elements available at a given connection size providing a choice according to the severity of your application

Applications

• Ash Handling
• Blowers-Side Channel
• Cement
• Compressor-Piston
• Compressor-Screw
• ConstructionContractor Industry
• Dock Controls
• Envelope Manufacturing
• Hydraulic Breathers - fine filtration
• Pneumatic Conveying Systems
• Power Plants
• Sparging
• Waste Water Aeration
• Industrial & Severe Duty
• Blowers-PD Type

Options

• Various elements available
• Available in Stainless Steel
• Hot dipped galvanized housings
• Hot dipped galvanized housings
• SPECIALTY Media Available- Higher Efficiency, Custom Media
• 0-100 psig pressure gauges on inlet and outlet
• Specialty media & gaskets/seals for custom installations / applications
