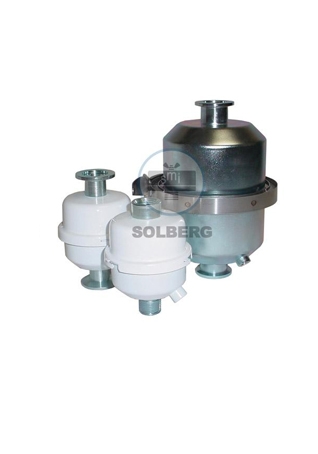

Products - Oil Mist Eliminators for Vacuum Pumps and Power Generator

EE Series ISO Flange, Fine Thread, MPT

Features

  • Fully drawn weatherhood - no welds to rust or vibrate apart
  • Durable carbon steel construction with baked enamel finish
  • Minimum 99.97% D.O.P.on 0.3 um diameter particles
  • ppmw = parts per million by wt.
  • 1/8" NPT oil drain
  • 2-5 PPM at rated flow
  • Helps purify surrounding environment
  • Temperature (continuous) min 40° F ( 4° C) max 220° F (104° C)
  • Compact, low profile design utilizing high performance coalescing media
  • Filter change out differential: 2.5 psid
  • EE Series-Back pressure spring designed to release element at 7.38 PSI (0.5 bar) differential for pump safety



Applications

  • Ash Handling
  • Blower Exhaust Oil Mist
  • Blowers-Centrifugal
  • Food Processing-Pressure
  • Leak Detection
  • Soil Venting/Remediation
  • Vacuum Coating
  • Vacuum Freeze Dry
  • Vacuum Outgassing
  • Industrial Vacuum Processes
  • Captures oil fog, mist, or smoke from exhaust on oil flooded vacuum pumps
  • Refrigeration and Air Conditioning evacuation service
  • Semiconductor Industry
  • Laboratory Industry
  • Autoclaving, Sterilization



Options

  • Special connections
  • Various media available
  • Pressure drop indicator
  • Multi-Stage filtration with SpinMeister Precleaner or Slip Fit Element
  • Stud outlet to bolt directly to blower
