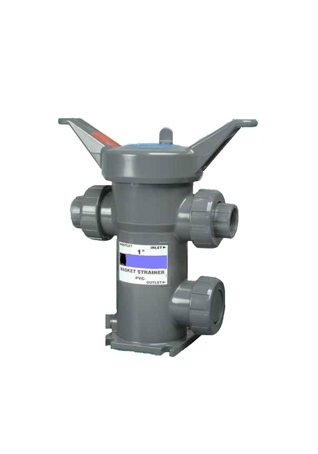

Plastic Simplex Strainers

The simplest way to protect pumps, spray nozzles, flow meters and similar equipment while working with corrosive liquids, is to install an amafiltergroup plastic strainer.

Unwanted particles are removed as the process media passes through a perforated basket. The filter basket traps the unwanted particles while the process media flows freely. If the line can be shut down for shorts periods to clean or change the filter basket, nothing beats the amafiltergroup plastic simplex strainer. No tools are required to remove, clean or replace the filter basket.

The whole operation takes only a couple of minutes. A tight seal of the basket to the strainer body seat is assured by the handle which is pressed down by the cover.

Features

External body threads

• Low pressure drop
• Wide choice of filter baskets (optional: stainles steel filter baskets)
• In-line or loop piping design
• True union connections
• Hand removable cover
• Integral, flat mounting base
• Viton® seals (optional: EPDM seals)
• Liquid displacement cover ensuring no liquid runs over the side when opening the filter.
