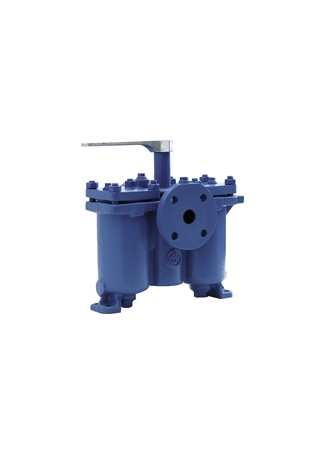

Duplex Fuel Strainer - UG 54

Duplex filter UG54: With stopcock change-over, rated pressure up to 10 bar (145 psi) Connection sizes: DN 20 to DN 80, cast design

The UG 54 series filter is a duplex filter with stopcock change-over.

Characteristics:

• Connection: DN 20–DN 80
• Material: GGG 40, G-CuSn10/12
• Operating overpressure up to 10 bar
• Filter element: screen basket (smooth or pleated)
• Filtration rating 25–5,000 μm (absolute)*

Options:

• Heating (steam/thermal oil, electric)
• Magnetic elements
• Differential pressure indicator (optical/electrical, mounted on filter)

High-performance, continuous filtration for plants

• Used in shipping and industry
• Continuous filtration supports rational production
  processes
• Mature engineering and robust design
• Compact design
• Minimal pressure drop through optimal flow design
• Elements with high differential pressure stability and dirt holding
  capacity
• Filter ratings from 25 to 5000 µm absolute,
  other ratings on request
• Suitable for use with fluids of all types
• Easy to service
• Worldwide distribution
