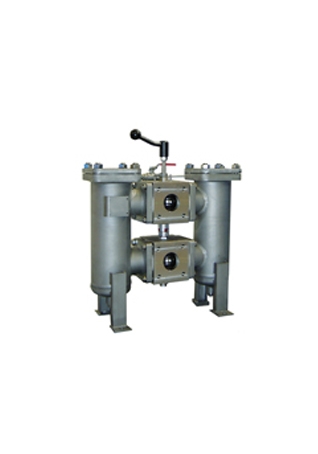

Duplex Fuel Strainer - VS 87

Duplex filter VS87-1: With smooth-running vessel change-over, rated pressure up to 16 bar (232 psi) Connection sizes: DN 100 to DN 250, cast design

The VS 87 series filter is a duplex filter with valve change-over.

Characteristics:

• Connection: DN 25–DN 80
• Material: H II steel, CrNi steel
• Operating overpressure up to 40 bar
• Filter element: screen basket (smooth or pleated)
• Filtration rating 25–5,000 μm (absolute)*

Options:

• Heating (steam/thermal oil, electric)
• Magnetic elements
• Differential pressure indicator (optical/electrical, mounted on filter)

High-performance, continuous filtration

• Used in shipping and industry
• Continuous filtration supports rational production processes
• Filtration efficiency due to interruption free operation
• Mature engineering and robust design
• Compact design
• Elements with high differential pressure stability
  (up to 5 bar → unrivalled) and dirt holding capacity
• Filter ratings from 25 to 5000 µm absolute,
  other ratings on request
• Suitable for use with fluids of all types
• Easy to service
• Worldwide distribution
