Simplex Fuel Strainer - EG 46

Simplex filter ES46: Simplex filter, welded design, rated pressure up to 40 bar (580 psi) Connection sizes: DN 15 to DN 300, steel structure

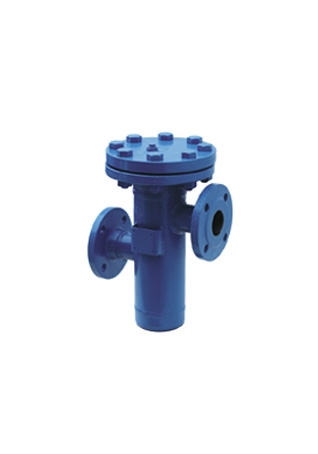

The ES 46 series filter is a simplex filter with a welded construction.

Characteristics:

• Connection: DN 20–DN 400
• Material: H II steel, CrNi steel
• Operating overpressure up to 100 bar
• Filter element: screen basket (smooth or pleated)
• Filtration rating 25–5,000 μm (absolute)*

Options:

• Heating (steam/thermal oil, electric)
• Magnetic elements
• Differential pressure indicator (optical/electrical, mounted on filter)
• Internal coating (plastic, rubber)

High-performance filters for modern systems

• Entry-level model among Filtration Group (Formerly MAHLE Industrial Filtration) Industrial Filtration products
• Used as a protective or safety filter in shipping and industry
• Simple, robust design
• Compact design
• Minimal pressure drop through optimal flow design
• Elements with high differential pressure stability and dirt holding
  capacity
• Filter ratings from 25 to 5000 µm absolute,
  other ratings on request
• Suitable for use with fluids of all types
• Easy to service
• Worldwide distribution
