Products - Fuel Treatment System

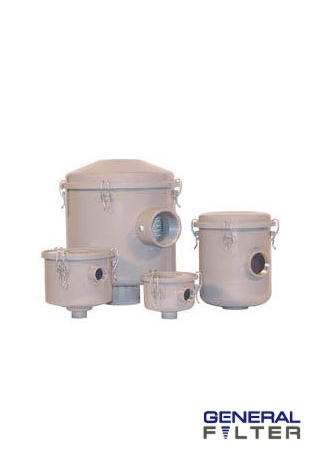

SOLBERG CSL

Features





  • 99%+ removal efficiency std: Polyester=5 micron, Paper=2 micron
  • Temp (continuous): min -15° F ( -26° C) max 220° F (104° C)
  • Filter change out differential: 10"-15" in. H2O above initial delta P
  • Pressure drop graphs available upon request
  • Rugged all steel construction with baked enamel finish
  • Brazed fittings for high vacuum duty
  • Stainless steel torsion clips for durability
  • Low pressure drop
  • Positive sealing O-ring seal system
  • Vacuum level: Typically 1x10-3 mmHg (1.3x10-3 mbar)
  • Seamless drawn housings

Applications
  • Applications
  • Ash Handling
  • Blowers-Side Channel
  • Blowers-Side Channel
  • Cement
  • Compressor-Piston
  • Compressor-Screw
  • Factory Automation
  • Leak Detection
  • Soil Venting/Remediation
  • Vacuum Lifters
  • Vacuum Packaging
  • Woodworking

Options
  • Various elements available
  • Vacuum gauge available
  • Support brackets
  • Available in Stainless Steel
  • Extra tap fittings for vacuum gauge
  • Specialty media & gaskets/seals for custom installations / applications
  • Activated carbon
  • Non Drain Back Filters (See EF Series)
